Compact excavator using trimble antennas to dig a trench

On-machine GNSS systems

Purpose-built for machine control

Maximize accuracy and uptime with rugged GNSS systems built for heavy equipment. From integrated smart antennas to flexible modular systems, find the perfect match for your fleet.

Request a demo

Overview

Precise positioning for machine control

Overview

Precise positioning for machine control

Boost productivity and eliminate rework by keeping your machines on design across any job site.

Built for extreme conditions and machine shock
Track all modern GNSS signals: BeiDou, GLONASS, Galileo, MSS, QZSS and SBAS
Options for every machine and budget
Integrated or modular systems
Systems that work where others fail

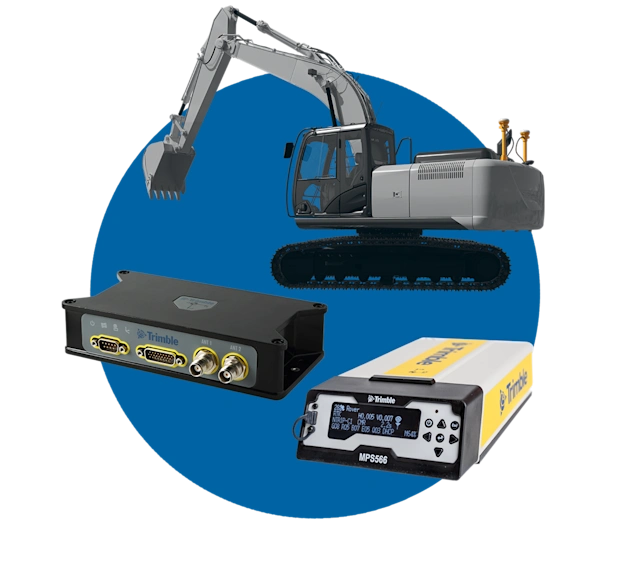

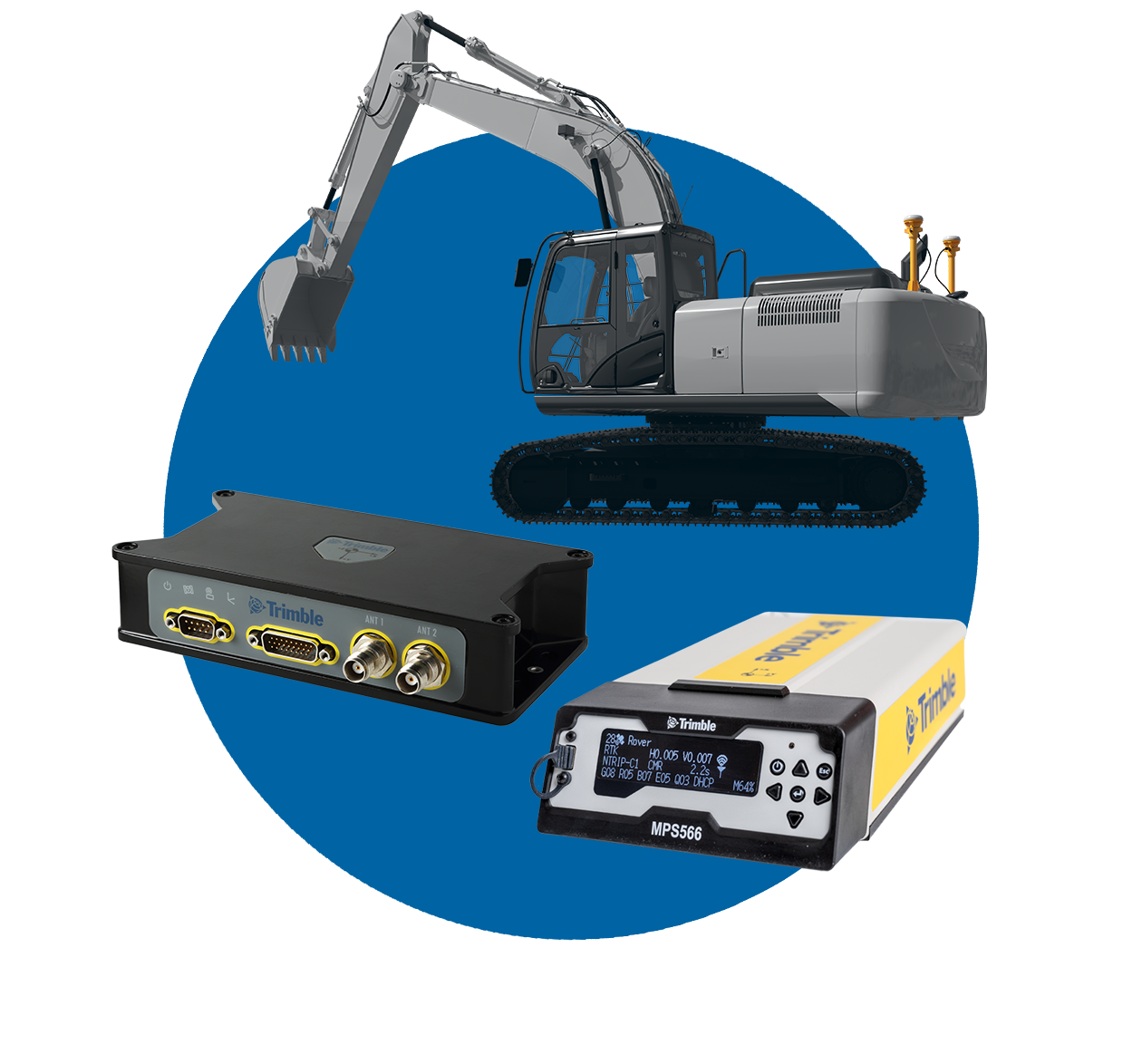

Heavy civil construction MPS566 and BX922 GNSS receivers

Premium smart antennas and receivers

When only the best will do

Built for high-production heavy earthmoving, these GNSS receivers are engineered for the extreme physical realities of the cutting edge. The best choice to maintain uninterrupted accuracy and zero-downtime performance near obstructions where other systems fail.

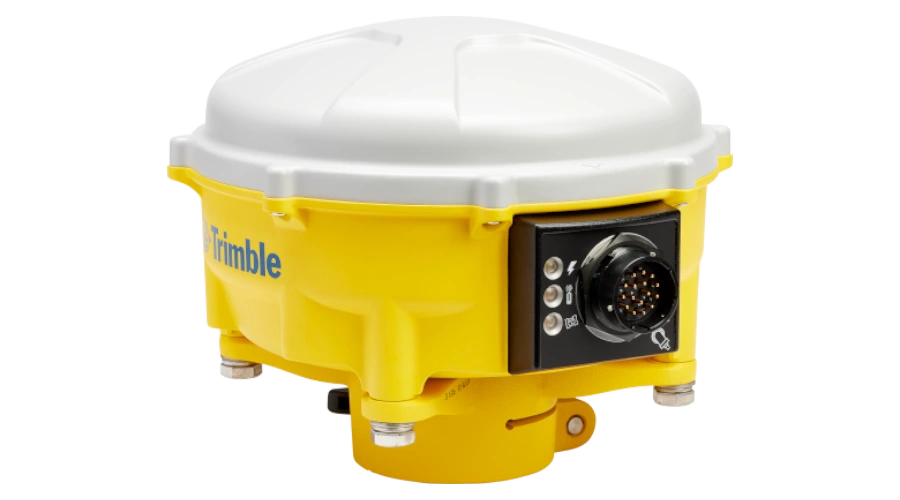

MS996 GNSS smart antenna

An integrated GNSS receiver, antenna and isolation system in one durable housing, the MS996 mounts anywhere on the machine — even on a blade — for an effective complement to a wide variety of heavy equipment.

Choose the right receiver

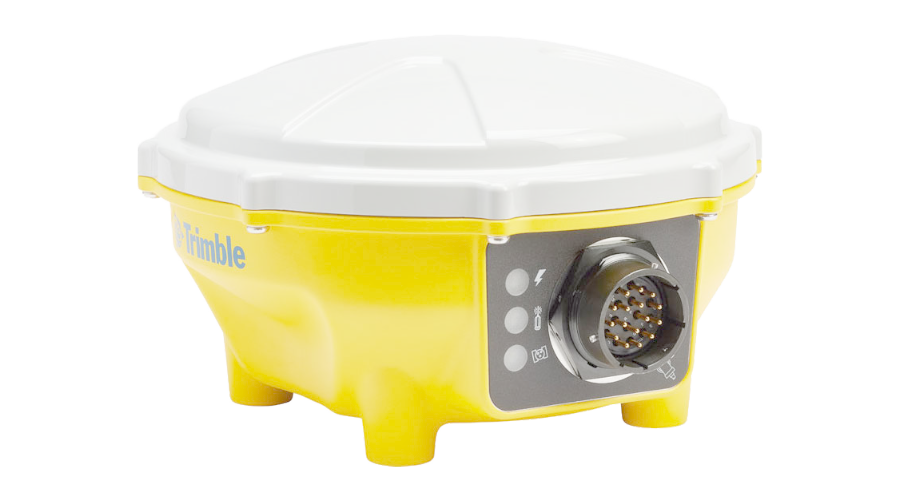

Close up of Trimble MS976 GNSS smart antenna for machine control

Read the eBook View the infographic

Value and specialty systems

Affordable options for specific applications

Maximize your return on investment by deploying targeted positioning power exactly where it is needed. From cost-effective receivers optimized for open, unobstructed work areas, to specialized dual-antenna systems for applications demanding exact heading and attitude measurements — such as dredging, drilling and solar farm piling.

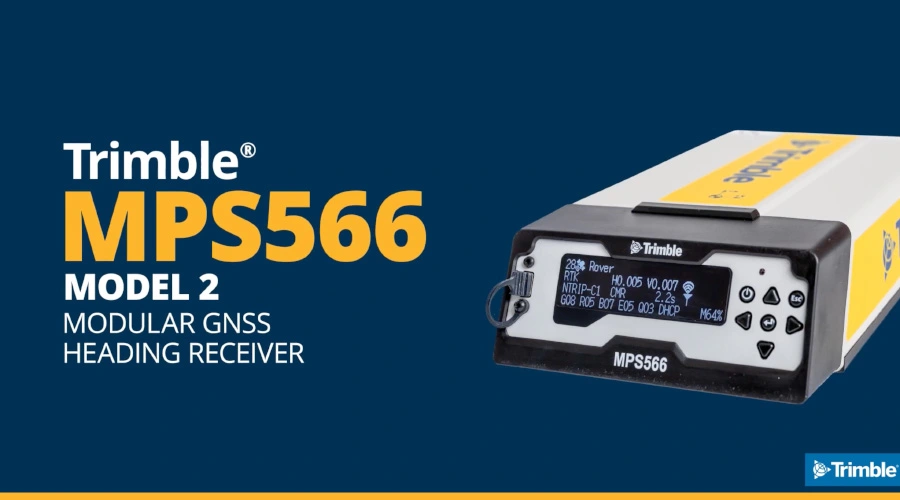

MPS566 Model 2

Work faster and smarter with our dual antenna GNSS heading receiver. This versatile all-in-one system seamlessly transitions between a high-accuracy jobsite base station and an on-machine solution for real-time positioning, heading and attitude monitoring on machines, vessel, or vehicles — backed by advanced connectivity and remote support.

Read the info sheet

COMPARE ON-MACHINE RECEIVERS

Find the right receiver for your machine

Available on flexible subscription plans, Trimble on-machine receivers pair with specialized field software to deliver accurate, reliable machine control. Compare features below to select the right setup for your equipment and jobsite.

MS996	MS976	MS956	BX992	MPS566	R780


Tier
Premium	Premium	Pro	Core	Pro	Pro
Smart Antenna
Yes	Yes	Receiver only	Receiver only	Receiver only	Yes

Trimble Earthworks
Yes	Yes	Yes	Excavators only	No	No
Roadworks
Yes	Yes	Yes	No	No	No
Groundworks
No	No	No	Yes	Yes	No
Trimble Marine Construction
No	No	No	Yes	Yes	No
Siteworks Machine Guidance
No	No	No	No	No	Yes

Cab or chassis mount
Yes	Yes	Yes	Yes	Yes	Boom only
Blade mount
Yes	No	No	No	No	No
Portable between machines
Yes	Yes	No	No	No	Yes

IP rating
IP69	IP69	IP67	IP67	IP67	IP68
Back to Top

GNSS antennas

The perfect pair for your modular receiver

Complete your system configuration by pairing these high-precision antennas with the modular receiver of your choice. Engineered to track all modern GNSS signals, they excel in high-multipath areas with robust low-elevation satellite tracking and the ability to minimize interference.

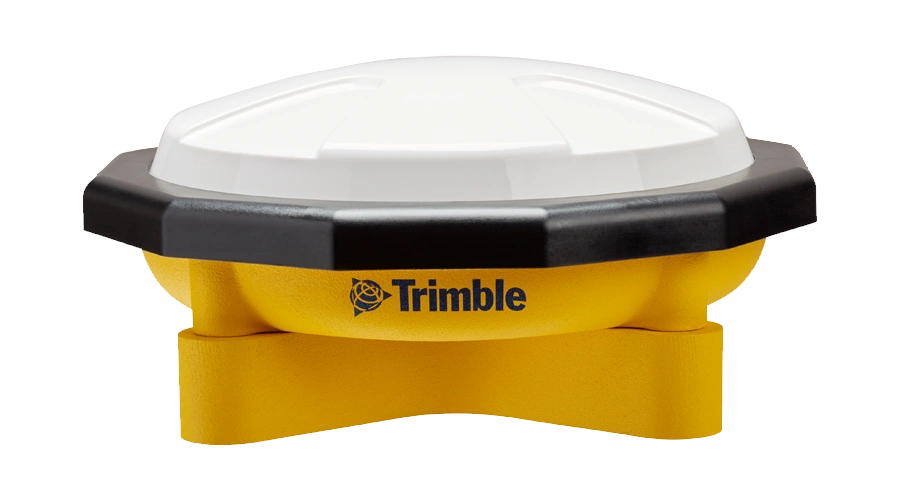

Zephyr 3 rugged

Need a high-performance GNSS rover antenna built to withstand high shock and vibration? This ruggedized antenna combines precision with advanced durability and specialized filtering, making it ideal for heavy earthmoving machinery, drilling rigs, marine vessels, cranes and more.

Corrections

GNSS correction sources

Trimble offers GNSS correction services ranging from high-precision RTK base stations and VRS Now to satellite-delivered RTX. Your GNSS operations are only as good as your correction source, it’s important to choose the right one for your business.

Explore correction options

Testimonials

Outcomes that inspire confidence

The new Trimble MS976 GNSS antennas are so robust and connect twice as fast as our older models, working effectively in environments where GNSS usually struggles. They’ve been a great addition to our fleet, and we've already ordered more for our new machines.

— Harry Redstone

Lead Engineer - Gartell & Son

Read the story Explore more stories

Technology

Industry-leading technology

Choose a tech provider with the innovative prowess, the industrial expertise and the track record to create reliable solutions that empower construction crews to do more with less. Trimble has what it takes to produce the results you need.

Trimble ProPoint®

Trimble xFill®

Trimble EVEREST™ Plus

Trimble IonoGuard™

Construction contractor using Trimble Earthworks machine control with ProPoint GNSS technology to overcome the challenging environment

Trimble ProPoint®

The most advanced GNSS processing engine in the industry. Uses the best available signals and filters out errors for superior performance in challenging environments.

Integrates with

Trimble Earthworks Grade Control platform on dozer and excavator working on construction site

Machine control and guidance

Trimble Earthworks grade control

Trimble Earthworks provides precise machine control that reduces rework by helping operators get it right the first time, regardless of their skill level.

Learn more

A piling machine with Trimble Groundworks technology performing precision piling

Machine control and guidance

Trimble Groundworks

Optimize production and revenue for drilling, piling and dynamic compaction operations. All day, all night and under almost any conditions.

Learn more

Trimble TDL450B Radio and R750 GNSS Modular receiver with construction site in the background

Hardware

Radios

Trimble radios offer flexible configuration options and rugged reliability for efficient use of GNSS on the construction site.

Learn more

Aerial view of a productive marine dredging operation using an excavator, barges, and a hydrographic survey boat

Machine control and guidance

Trimble Marine Construction

Trimble marine construction systems make the work easier, faster, cheaper and greener with a wide range of highly configurable tools empowering operators with unmatched speed, precision and efficiency.

Learn more

Trimble Siteworks Positioning system working with a 3D model while capturing accurate data on a paving project

Site surveying

Trimble Siteworks

Trimble Siteworks positioning systems are designed to eliminate downtime by making every minute more productive. Handle complex files and 3D data sets quickly, so you can spot issues and solve problems before they slow you down.

Learn more

Paving machine with Trimble Roadworks laying new asphalt

Machine control and guidance

Trimble Roadworks paving control

State-of-the-art Trimble Roadworks paving control platform empowers any operator to work with greater speed and efficiency.

Learn more

Interested to learn more or where to buy?

Find your local dealer

Purpose-built for machine control

Precise positioning for machine control

Precise positioning for machine control

When only the best will do

MS996 GNSS smart antennaMS996 GNSS smart antenna

MS976 GNSS smart antennaMS976 GNSS smart antenna

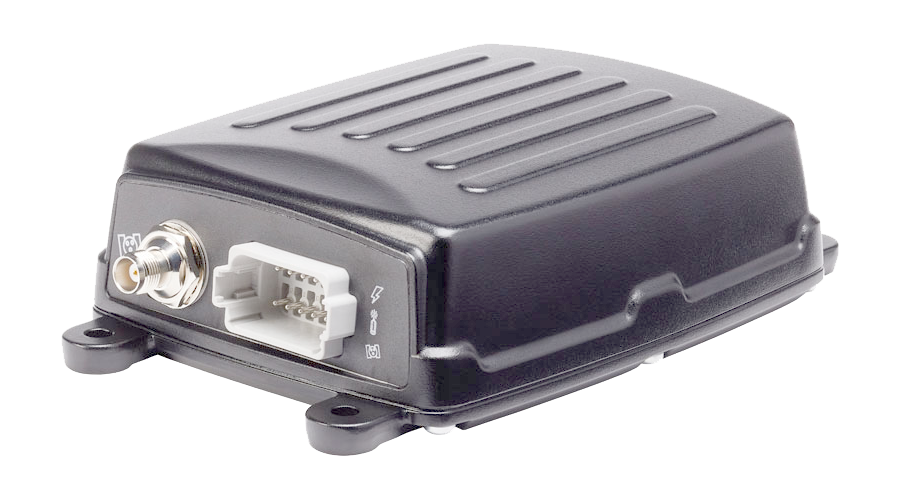

MS956 GNSS modular receiverMS956 GNSS modular receiver

Affordable options for specific applications

MPS566 Model 2MPS566 Model 2

R780 GNSS systemR780 GNSS system

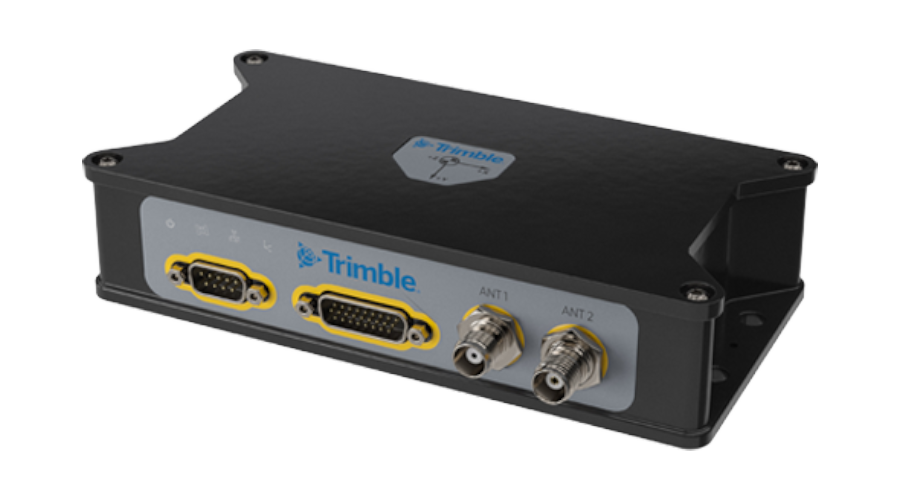

BX992BX992
